Little Smith Creek: AG-02RC-P-14-0158. This project was completed in November, 2014. The contract total was $170,215.00. This project consisted of removal of existing culvert in 2 different areas and replacement of one, 21 x 15 corrugated steel arch pipe and one 108" diameter corrugated steel pipe, placement of geogrid, uniaxial and biaxial reinforcement, mechaniically stabilized earth wall and crushed aggregated placement. CO: Karen Ruklic, Nez Perce Forest Service

Photos

...

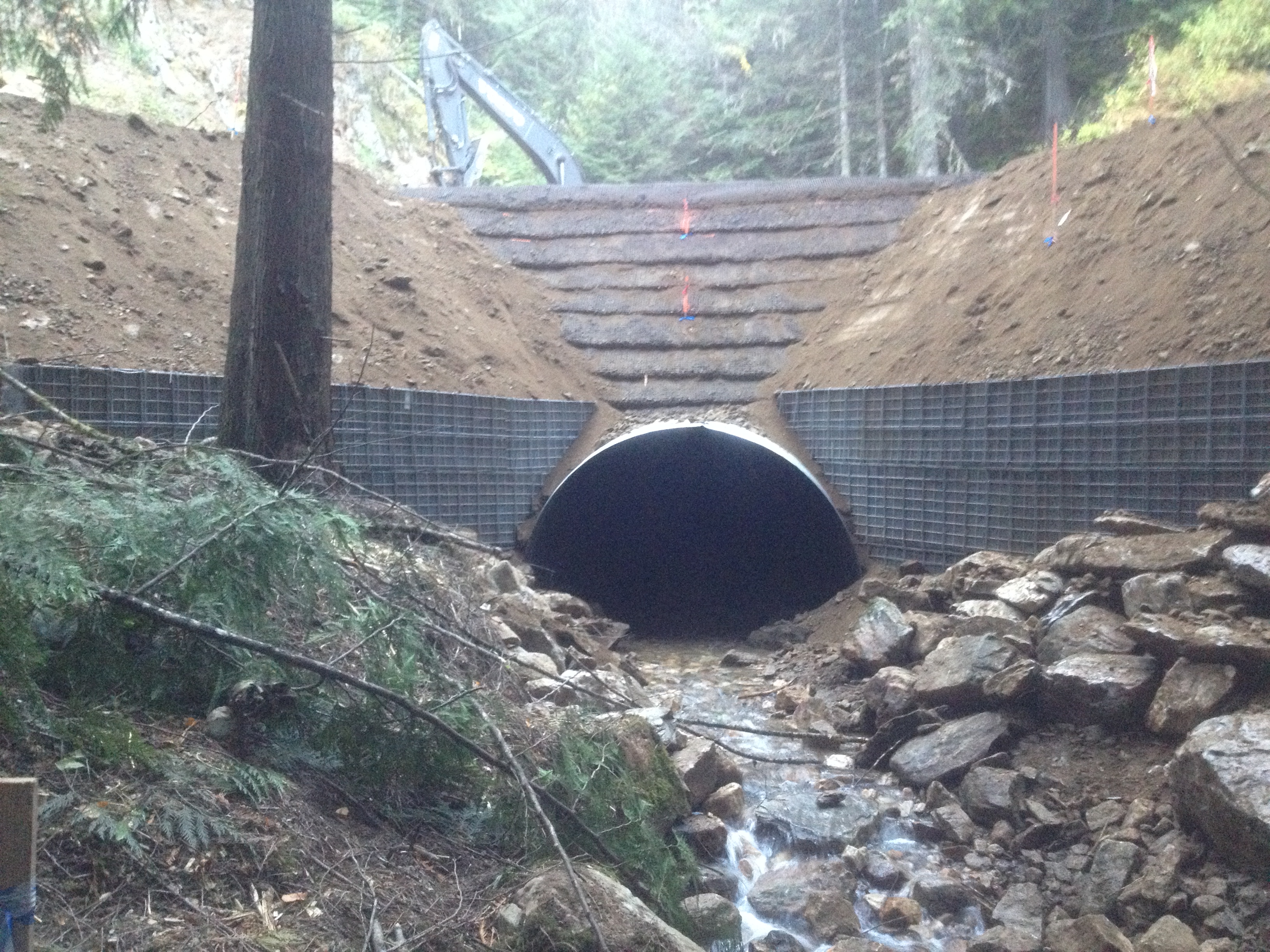

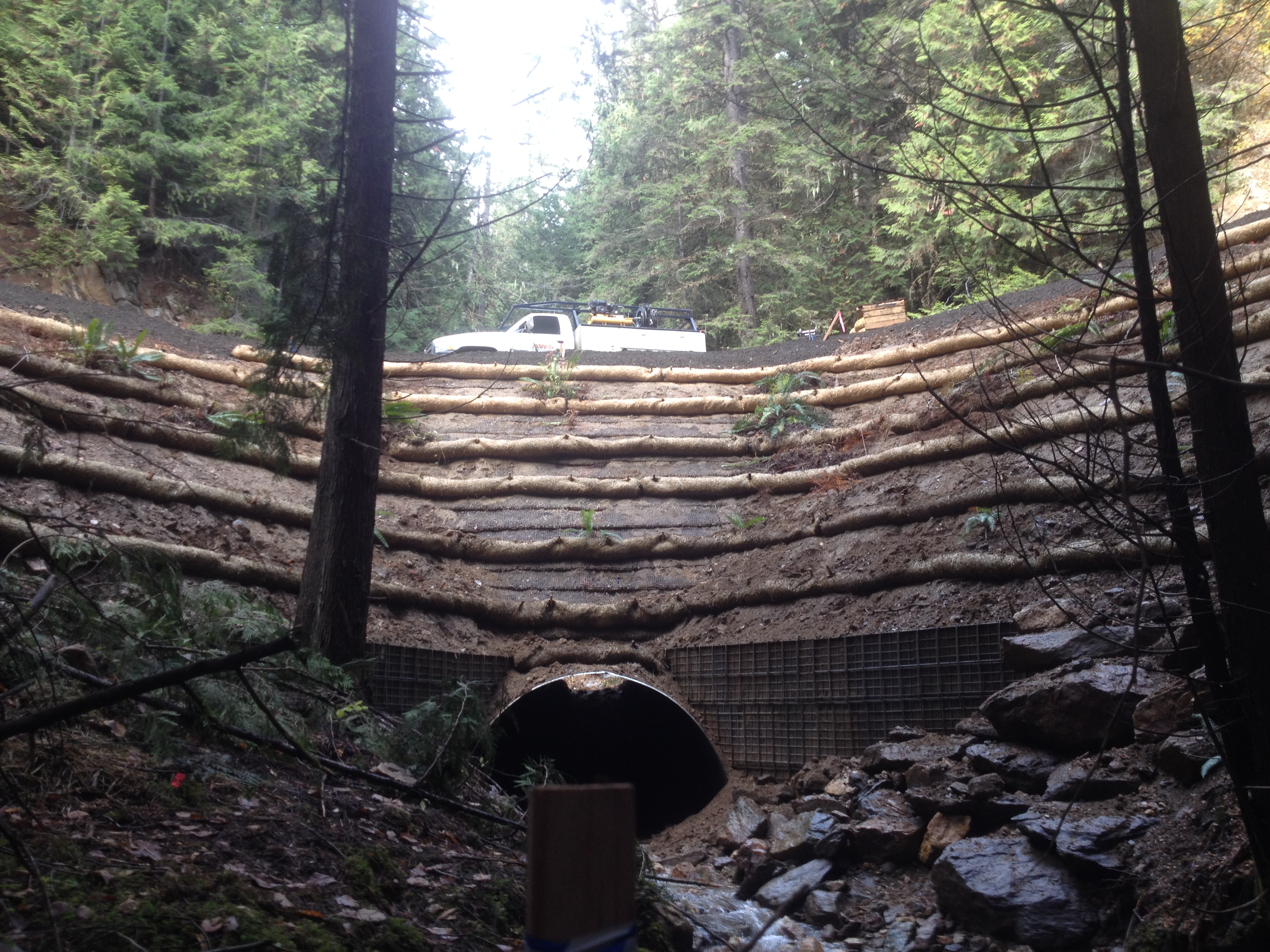

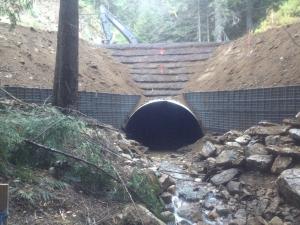

MSE & Arch Pipe Completed

...

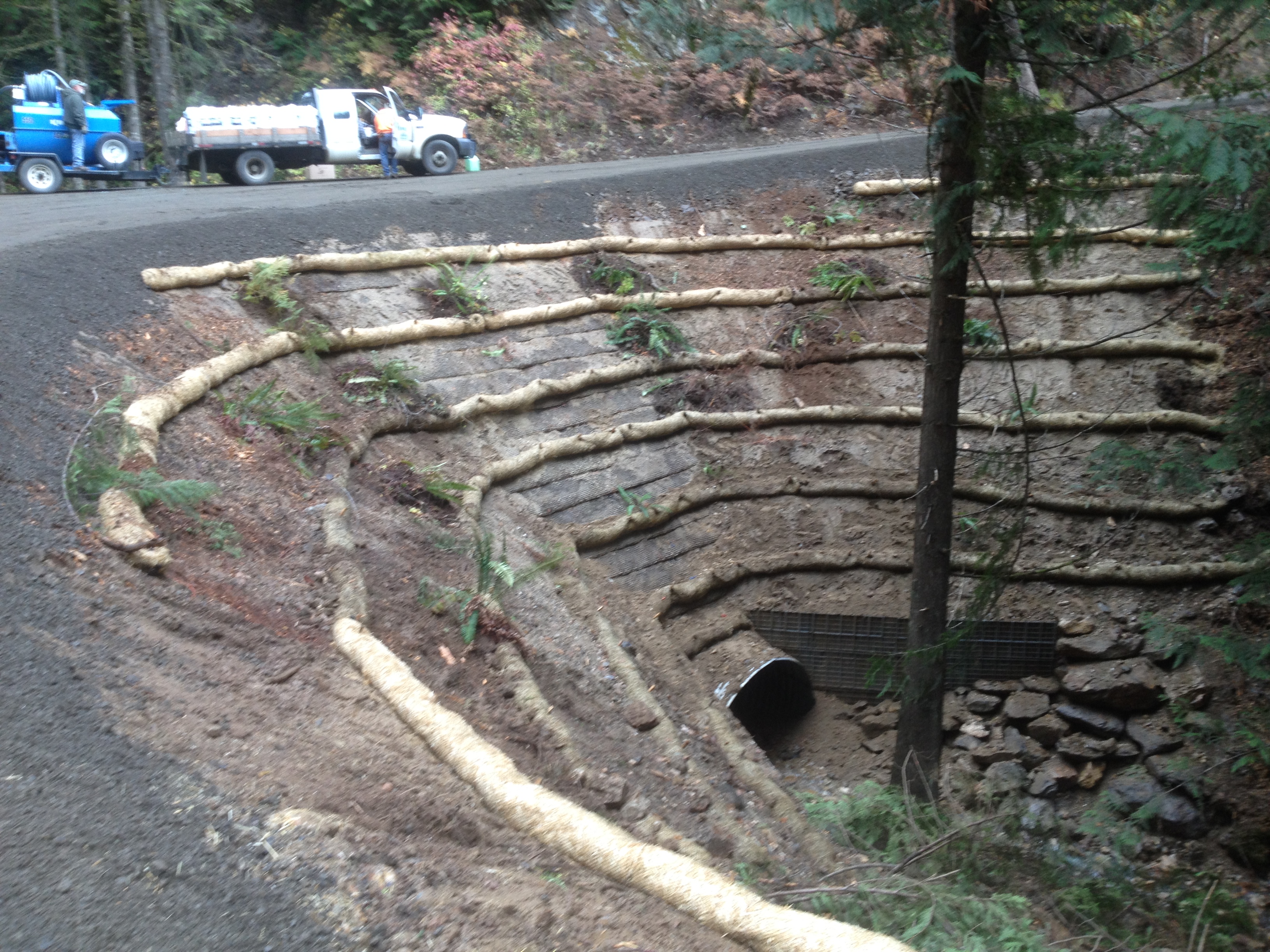

Clump plantings in progress

...

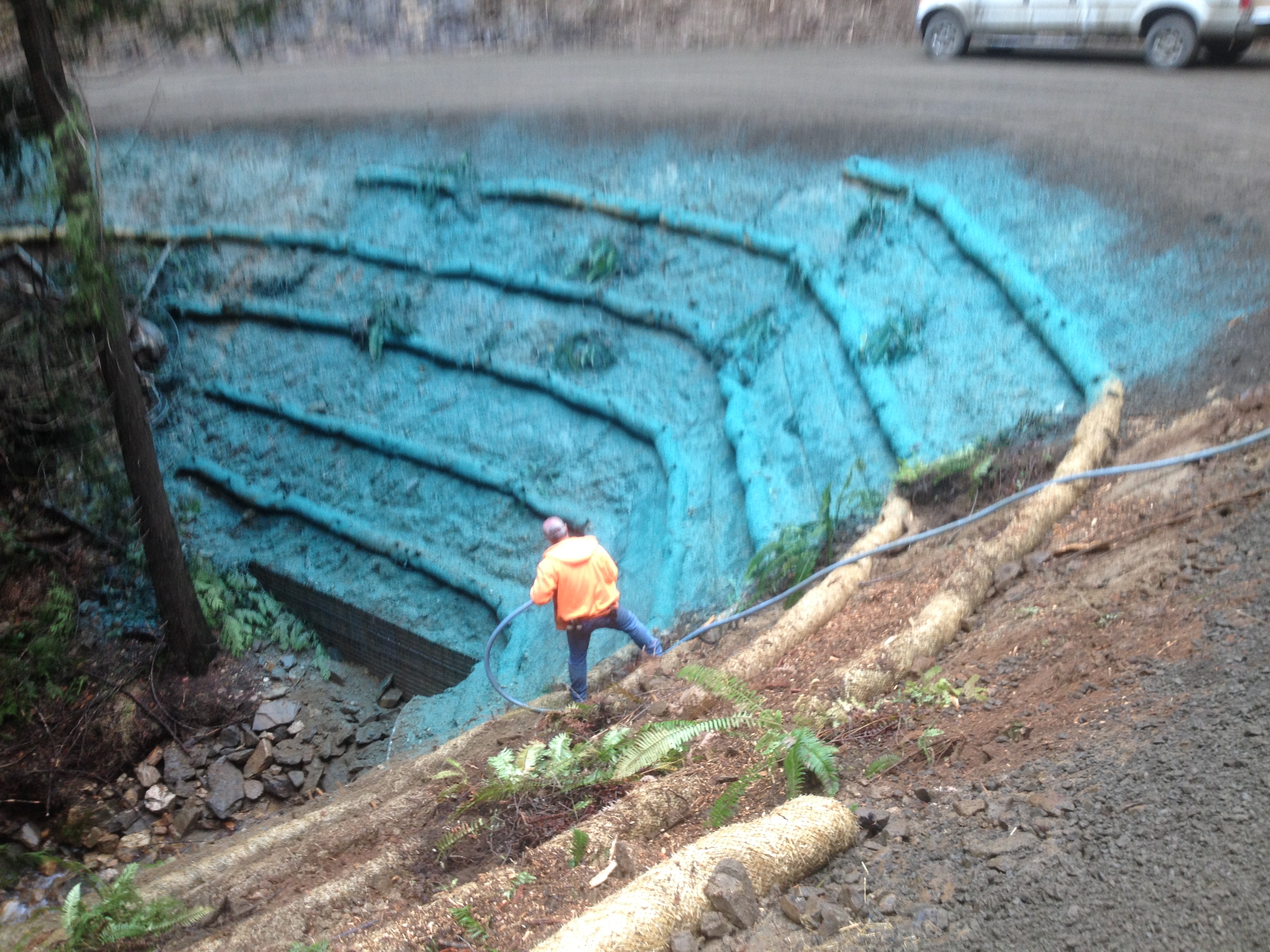

Hydroseeding Bank

...
MSE & Arch Pipe in Progress

...
MSE in progress

...

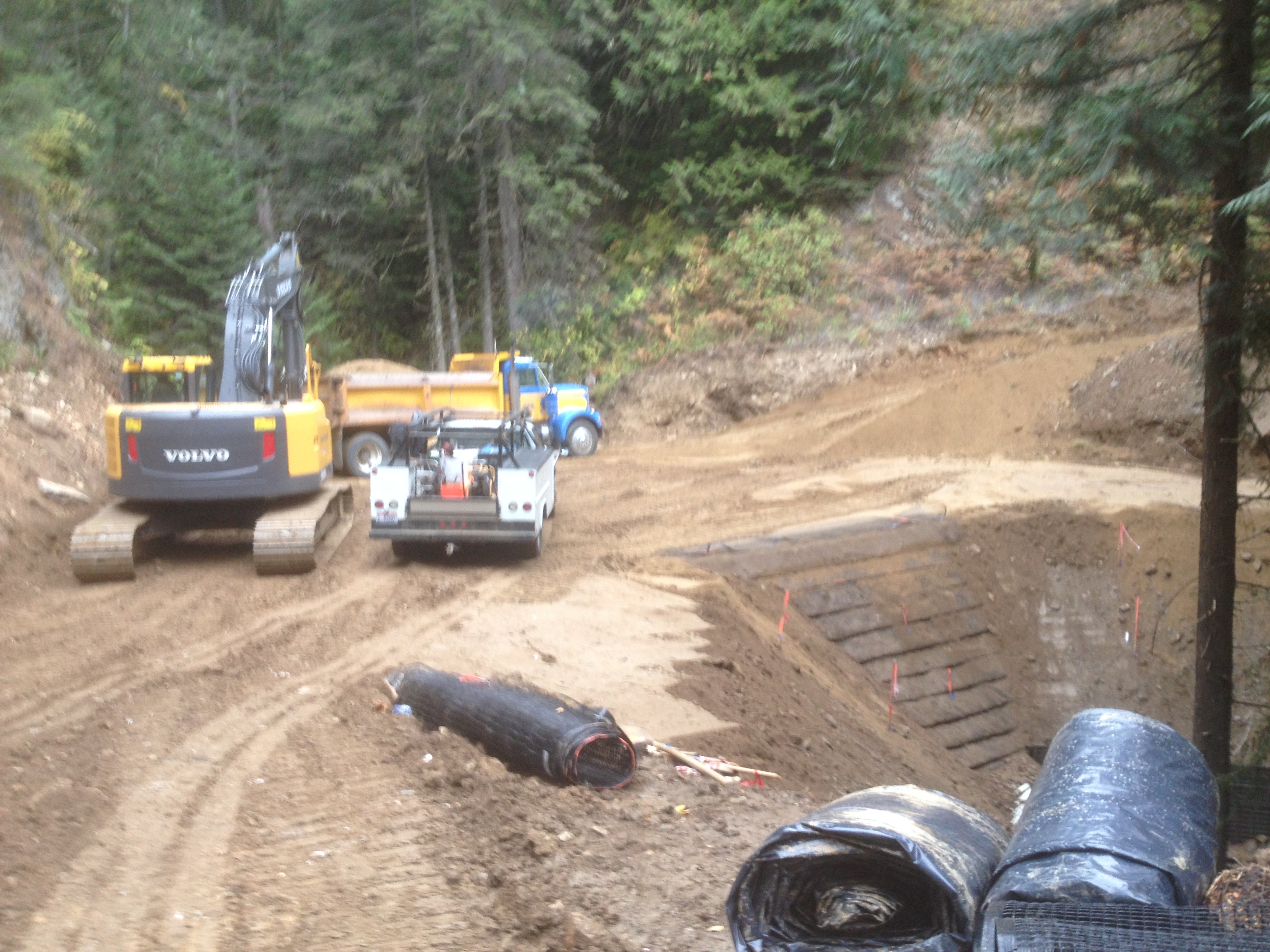

Road work above site

...

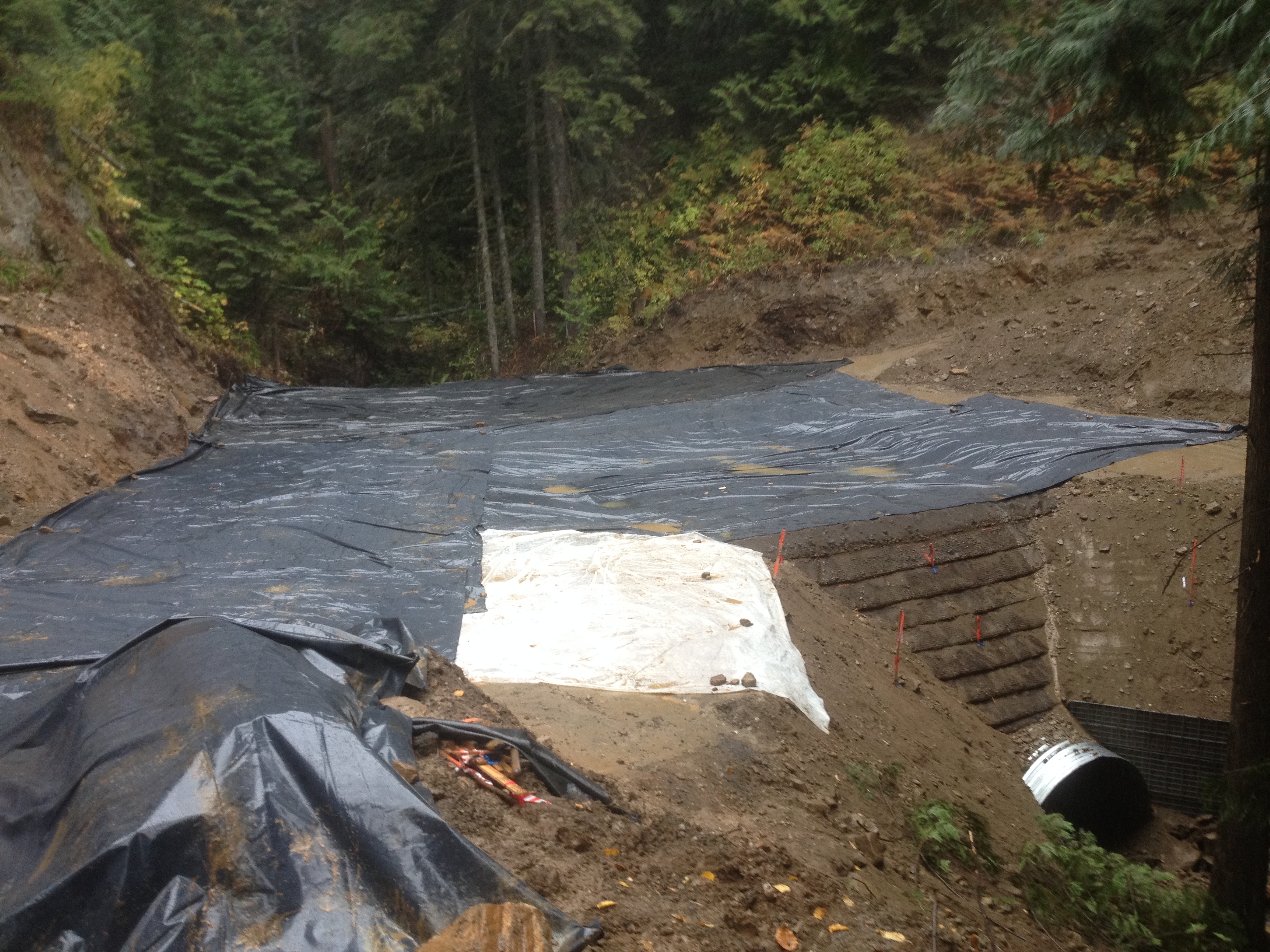

Fill layer top of pipe

...
MSE in progress

...

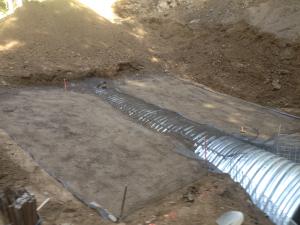

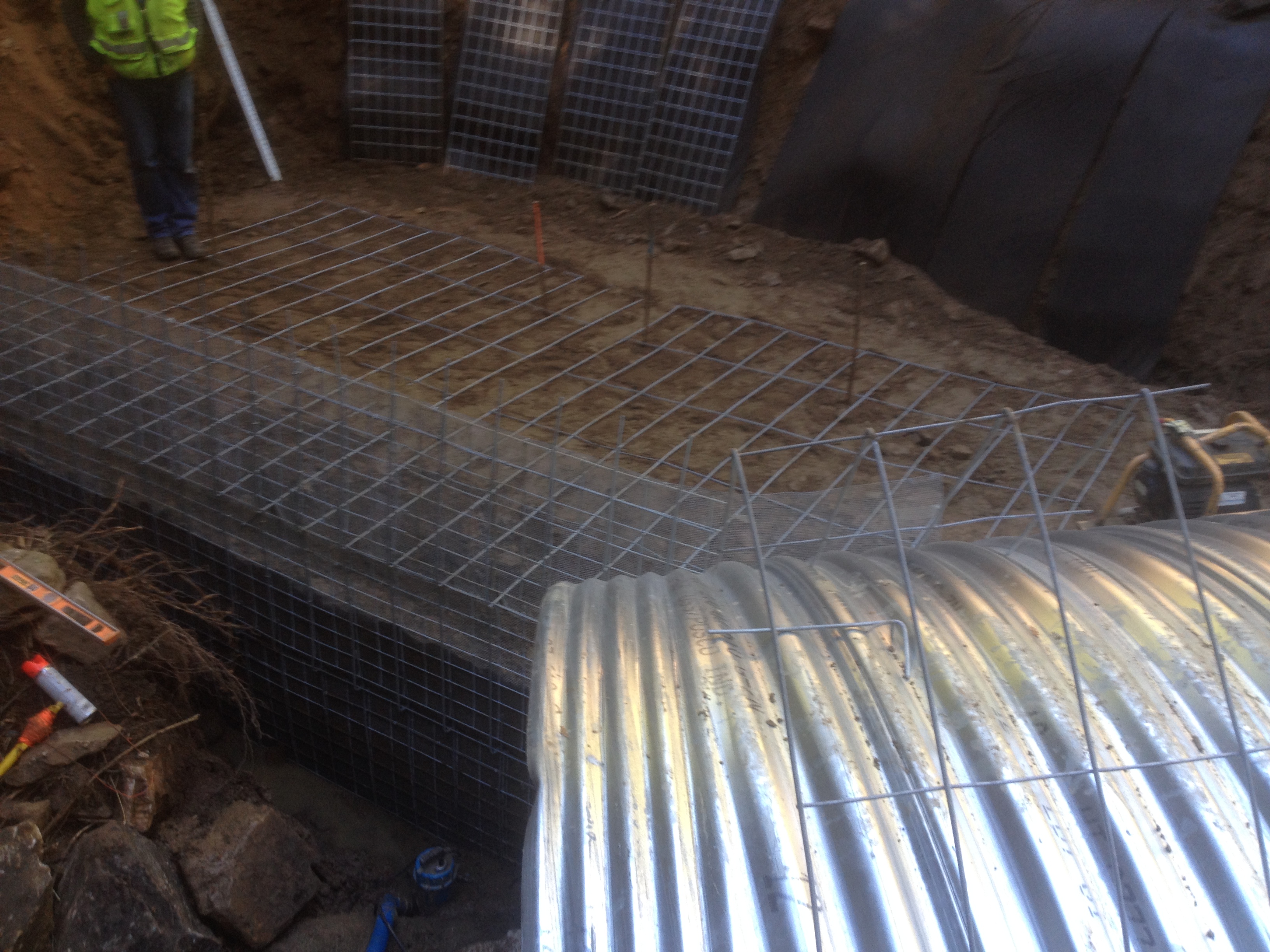

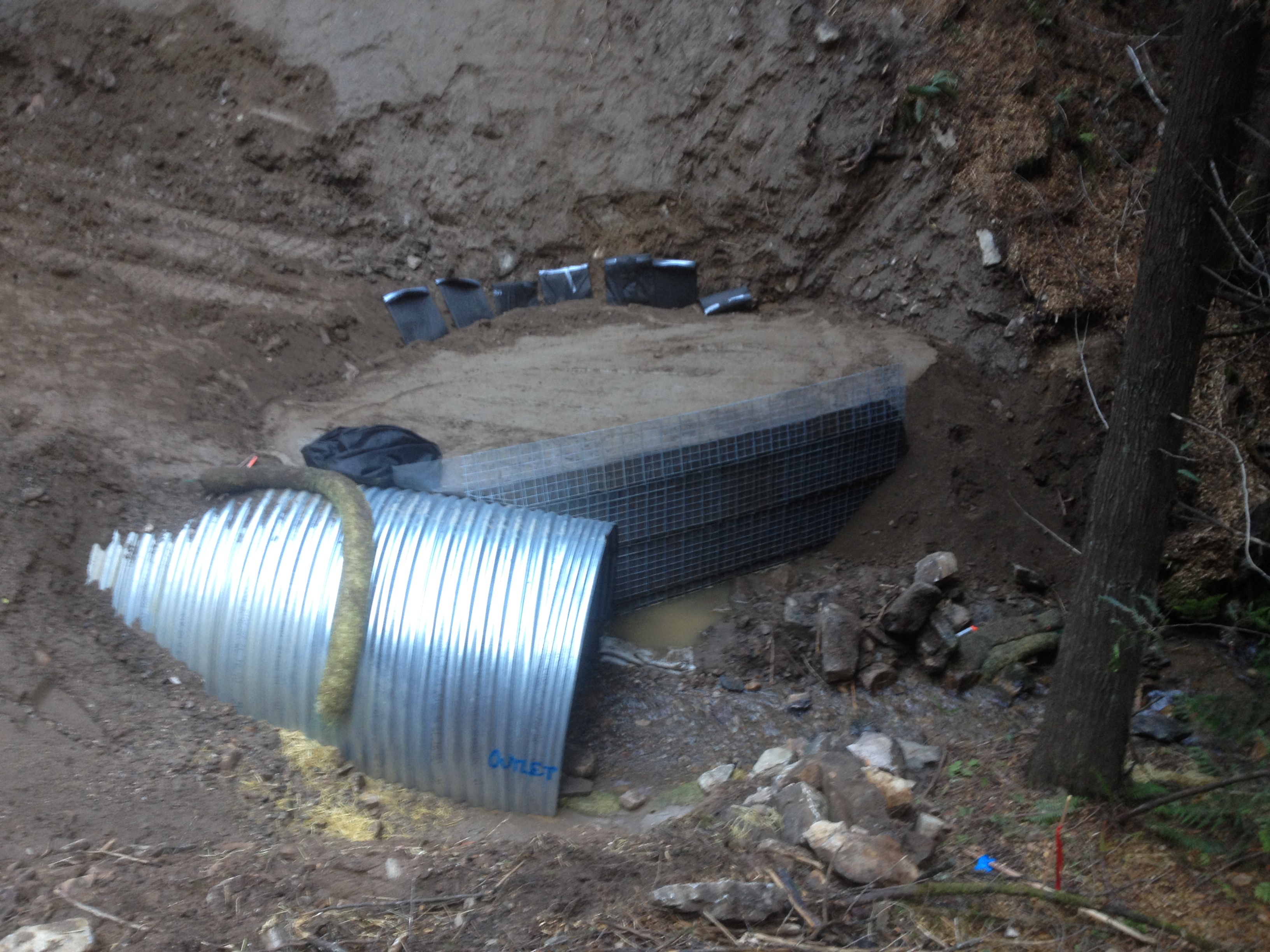

MSE Base layer adjacent to pipe
